The Best Networking, Media, and Docking Solution for Pro Creatives
- Lightning-fast 40Gb/s transfer speeds: (2) Thunderbolt 3 ports (Thunderbolt 2/Thunderbolt backward compatible)1
- Bandwidth to edit from your server: 10Gb/s Ethernet port
- Easy media ingest at speeds up to 370MB/s: CFexpress type B and SD 4.0 Card Readers
- Power while working: notebook charging via Thunderbolt 3 port
- Connect your peripherals: (3) USB 3.2 Gen 1 ports
- See your work: Connect two 4K displays or one 5K display
- Securely powered: locking power connection
- Multi-bay external drive access: eSATA port with port multiplier support
- Thunderbolt certified for Mac and Windows
High-Bandwidth and Flexibility for Demanding Hi-Res Workflow Needs

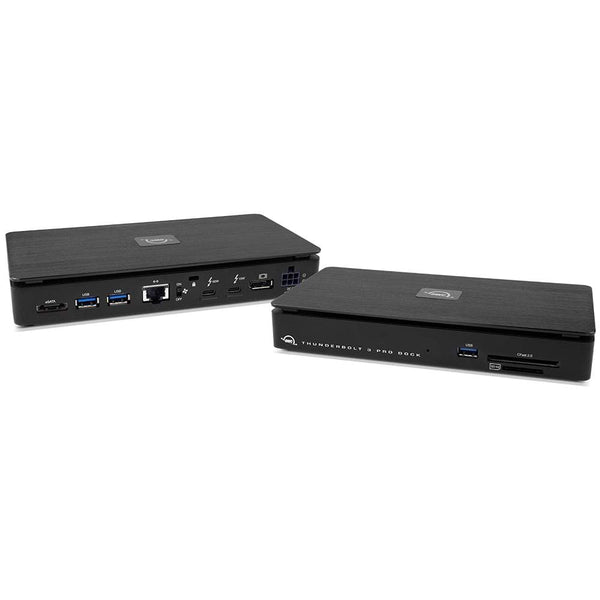

Pro-level docking stations should be ready to handle any situation that you encounter in a production workflow. The OWC Thunderbolt 3 Pro Dock is your on-location and post-production “mission control” with an unrivaled combination of super-fast 10Gb Ethernet, CFast and SD card readers, two Thunderbolt 3 ports, three USB 3.1 ports, and full support for eSATA devices and drives.
With this unique productivity configuration, you can upload and work with 4/8K RAW video and RAW photo files immediately at speeds up to 370MB/s. Collaborate in a shared workflow environment via the 10Gb Ethernet port to keep your projects streaming from file setup to final renders with headroom to spare. Add up to a 5K display via the second Thunderbolt 3 port or up to two 4K displays via the built-in DisplayPort connection and the second Thunderbolt 3 port. Daisy chain up to six Thunderbolt devices. All while powering your laptop and managing the typical USB 3.1 devices you need to get the job done.
Add Media Versatility to DIT Carts
When you’re on location, your cart needs the power of versatility. With conveniently accessible front-side CFast 2.0 and SD 4.0 card readers, the Thunderbolt 3 Pro Dock helps you manage multiple card uploads efficiently. It’s a huge asset when you’re covering live events like conferences, festivals, and concerts where you’re working with multiple videographers and photographers.
Small Footprint, Big Connections
Sized similarly to a single external drive enclosure, the Thunderbolt 3 Pro Dock’s aluminum case helps keep cart weight streamlined while easily fitting into a cart drawer or small box during cart breakdown.
With two Thunderbolt 3 ports, the Thunderbolt 3 Pro Dock offers incredible potential to connect multiple devices to take on the biggest projects. You can daisy-chain up to 5 additional Thunderbolt devices to the Thunderbolt 3 Pro Dock for studio-level storage, RAID arrays, eGPUs for graphics processing, or all of these combined and connected at 40Gb/s bandwidth.
Discover new ways to meet the challenges of any workflow:
Thunderbolt 3 Pro Dock + ThunderBlade = the ultimate on-site workflow setup
Thunderbolt 3 Pro Dock + ThunderBay 4 = high capacity RAID workstation
Thunderbolt 3 Pro Dock + OWC Express 4M2 = ultra-fast RAID workstation
Thunderbolt 3 Pro Dock + OWC Envoy Pro EX = rugged capture kit for video pros
Thunderbolt 3 Pro Dock + Mercury Helios FX 650 = high-end graphics process workstation
Conquers Workflows and Combats Clutter
When you’re back in your office or studio, the Thunderbolt 3 Pro Dock has the power and ports you need to manage your workflow and take control of your workspace. The Thunderbolt 3 Pro Dock is compact, so you can comfortably manage your peripherals and keep your workspace free of clutter. Its 10Gb Ethernet connection keeps you connected at top speeds, and with 60W charging power, your notebook is charged up and ready to move.
Disconnect in One Click
OWC Dock Ejector software safely disconnects drives in a single click. Designed by OWC hardware and software engineers, Dock Ejector ensures all data is written before disconnection, saving time and protecting against data loss. Use it to move quickly between workstations and get the most out of your OWC Dock.
OWC ClingOn
Stabilize Thunderbolt 3 and USB-C Cables at the Connection Point.Unexpected disconnnects during file transfers or a work session can be devastating. This quick and easy add-on reduces – if not completely eliminates – cable strain on USB-C and Thunderbolt 3 connection ports.
OWC, Trusted by Pros & Enthusiasts the World Over
We build our hardware to the highest standards of reliability and performance. Because 100% reliability is always the goal, we rigorously quality test and back our hardware with a 2 Year OWC Limited Warranty and award-winning customer support.
